TRIPP LITE

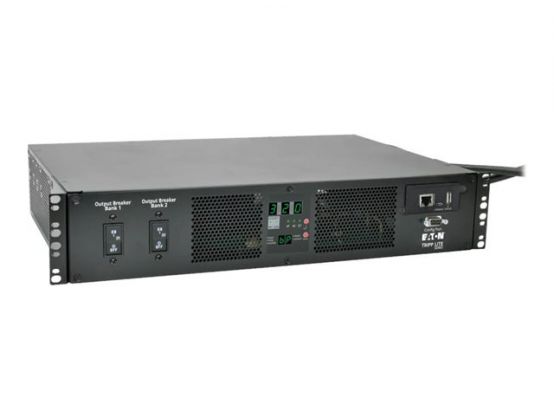

Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - Power distribution unit (rack-mountable) - 32 A - AC 200/208/220/230/240 V - 7.7 kW - 1-phase - Ethernet - input: IEC 60309 32A - output connectors: 18 (power IEC 60

Name: Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - Power distribution unit (rack-mountable) - 32 A - AC 200/208/220/230/240 V - 7.7 kW - 1-phase - Ethernet - input: IEC 60309 32A - output connectors: 18 (power IEC 60
Brand: TRIPP LITE
SKU: 1TPOWPAC-013572
Price: 1175.06 GBP
Availability: OutOfStock

SKU

1TPOWPAC-013572

Manufacture#: PDUMH32HVATNET

£979.22

£1175.06 inc VAT

Checking delivery…

Product details

Power distribution unit (rack-mountable)
32 A
AC 200/208/220/230/240 V
7.7 kW

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U
Power distribution unit (rack-mountable)
32 A
AC 200/208/220/230/240 V
7.7 kW
1-phase
Ethernet
input: IEC 60309 32A
output connectors: 18 (power IEC 60320 C13, IEC 60320 C19)
2U
19"
3 m cord
TAA Compliant

Overview

7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA.

Specification

Product Description Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - power distribution unit - 7.7 kW - TAA Compliant

Device Type Power distribution unit - rack-mountable

Cord Length 3 m

Rack Size 19" - 2U

Weight 6.2 kg

Input Wiring 1-phase

Input Voltage AC 200/208/220/230/240 V

Output Voltage AC 200/208/220/230/240 V

Power Capacity 7.7 kW

Input Connectors 2 x power IEC 60309 32A

Output connectors 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Networking Ethernet

Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH

Included Accessories Cable ties

TAA Compliant Yes

Dimensions (WxDxH) 44.4 cm x 31.7 cm x 8.8 cm

Manufacturer Warranty 2-year warranty

General

Device Type Power distribution unit - rack-mountable

Height (Rack Units) 2U

Rack Size 19"

Cord Length 3 m

Power Device

Input Voltage AC 200/208/220/230/240 V

Frequency Provided 50/60 Hz

Input Wiring 1-phase

Input Connectors 2 x power IEC 60309 32A

Power Output Connectors Details 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Output Voltage AC 200/208/220/230/240 V 50/60 Hz

Max Electric Current 32 A

Power Capacity 7.7 kW

Circuit Protection Circuit breaker

Networking

Remote Management Interface Ethernet

Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH

Expansion / Connectivity

Interfaces 1 x management (Ethernet) - RJ-45 ¦ 1 x management - 9 pin D-Sub (DB-9)

Miscellaneous

Included Accessories Cable ties

Cables Included 2 x power cable - integrated - 3 m

Rack Mounting Kit Included

Features LED display, amp meter, Automatic Transfer Switch (ATS), AC frequency monitoring, power factor metre

Compliant Standards FCC Class A certified, RoHS, UL 60950-1, CSA 22.2 No. 60950-1

TAA Compliant Yes

Software / System Requirements

Software Included TrippLite PowerAlert

Manufacturer Warranty

Service & Support Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature -15 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 95% (non-condensing)

Dimensions & Weight

Width 44.4 cm

Depth 31.7 cm

Height 8.8 cm

Weight 6.2 kg

Dimensions & Weight (Shipping)

Shipping Width 42.4 cm

Shipping Depth 50.5 cm

Shipping Height 19.8 cm

Shipping Weight 9.2 kg
