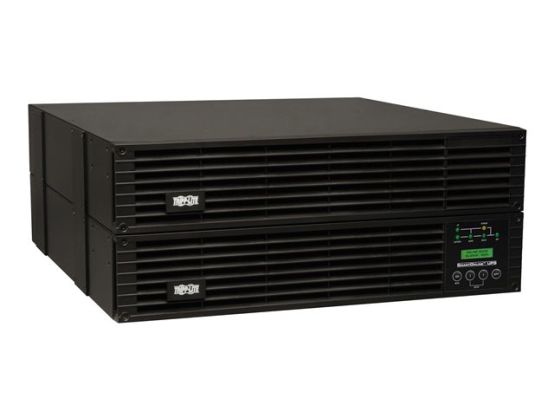

Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 200-240V USB DB9 Manual Bypass Hot Swap 4URM - UPS - 5.4 kW - 6000 VA
Manufacture#: SU6000RT4UHVHW
£1880.60
£2256.72 inc VAT
Checking delivery…
Product details
- UPS (rack-mountable)
- AC 200/208/220/230/240 V
- 5.4 kW
- 6000 VA
Payment options available at checkout
Main features
- Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 200-240V USB DB9 Manual Bypass Hot Swap 4URM
- UPS (rack-mountable)
- AC 200/208/220/230/240 V
- 5.4 kW
- 6000 VA
- RS-232, USB
- output connectors: 4
- 4U
- 19"
Overview
SmartOnline 208/240, 230V 6kVA 5.4kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, Hardwire.
- 6000VA / 6kVA / 5400W on-line double-conversion 4U rack/tower UPS, Sine Wave
- Included maintenance bypass switch enables live replacement of UPS with zero downtime
- Extended runtime options, Interactive LCD interface, Economy-mode option, 0.9 power factor
- Add optional WEBCARDLX with latest version of PADM20 for enhanced remote management
- Hardwire 200-240V 50/60Hz (3 wire) input; Hardwire (3 wire) output; Configurable for 200/208/220/230/240V 50/60Hz output
Product Description
Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 200-240V USB DB9 Manual Bypass Hot Swap 4URM - UPS - 5.4 kW - 6000 VA
Device Type
UPS - rack-mountable
Rack Size
19" - 4U
Weight
49 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
5.4 kW / 6000 VA
Input Connectors
Hardwire
Output connectors
4 x power IEC 60320 C19
Run Time (Up To)
2 min at full load
Networking
RS-232, USB
Remote Management Protocol
SNMP, HTTP
Dimensions (WxDxH)
44.5 cm x 52.6 cm x 17.4 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - rack-mountable
Height (Rack Units)
4U
Rack Size
19"
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Margin
+ 10% / - 10%
Frequency Required
50/60 Hz
Input Connectors
Hardwire
Power Output Connectors Details
4 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
5.4 kW / 6000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Battery
Voltage Provided
192 V
Run Time (Up To)
2 min at full load
Recharge Time
6 hours
Networking
Remote Management Interface
RS-232, USB
Remote Management Protocol
SNMP, HTTP
Expansion / Connectivity
Interfaces
1 x USB - 4 pin USB Type A ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Miscellaneous
Cables Included
Power cable 3 m ¦ USB cable ¦ Serial cable
Rack Mounting Kit
Included
Features
On/off switch, audible alarm, LCD display, LED indicators, noise filtering, built-in bypass switch, cold-start function, cooling fan
Compliant Standards
CSA, IEC 61000-4-5, UL 1778, RoHS, FCC Part 15 A
Software / System Requirements
Software Included
TrippLite PowerAlert
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
60 dBA
Dimensions & Weight
Width
44.5 cm
Depth
52.6 cm
Height
17.4 cm
Weight
49 kg
Dimensions & Weight (Shipping)
Shipping Width
59.9 cm
Shipping Depth
73.9 cm
Shipping Height
32.3 cm
Shipping Weight
71.1 kg
