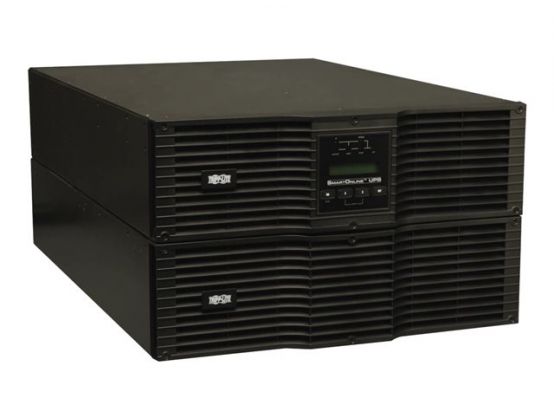

Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap 6URM - UPS - 7.2 kW - 8000 VA
Manufacture#: SU8000RT3UHW
£2761.08
£3313.30 inc VAT
Order by 15:00 and receive your order on Monday 24 Mar
Product details
- UPS
- AC 200/208/220/230/240 V
- 7.2 kW
- 8000 VA
Payment options available at checkout
Main features
- Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap 6URM
- UPS
- AC 200/208/220/230/240 V
- 7.2 kW
- 8000 VA
- RS-232
- 6U
- attractive black
Overview
SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, Hardwire.
- 8kVA / 8000VA / 7200W on-line double-conversion UPS; 0.9 power factor
- 200/208/220/230/240V 50/60Hz output, Economy mode option
- 6U Rack/Tower compatible; Hot-swap power and battery modules
- Add optional WEBCARDLX with latest version of PADM20 for enhanced remote management
- Front panel LEDs with detailed LCD monitoring and control screen
- Expandable runtime with optional external battery packs
- Hardwire input (3 wire); Hardwire output (3 wire)
Product Description
Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap 6URM - UPS - 7.2 kW - 8000 VA
Device Type
UPS - external
Rack Size
6U
Weight
87 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V ± 2%
Power Capacity
7.2 kW / 8000 VA
Input Connectors
Hardwire
Output connectors
1 x hardwire
Battery
Lead Acid expandable
Battery Form Factor
External
Run Time (Up To)
6 min at full load
Networking
RS-232
Colour
Attractive black
Dimensions (WxDxH)
44.4 cm x 63.5 cm x 26.7 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - external
Battery Enclosure Type
External
Height (Rack Units)
6U
Colour
Attractive black
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 156 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
Hardwire
Power Output Connectors Details
1 x hardwire
Output Voltage
AC 200/208/220/230/240 V ± 2% - 50/60 Hz
Power Capacity
7.2 kW / 8000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Battery
Type
Expandable
Technology
Lead Acid
Voltage Provided
240 V
Run Time (Up To)
6 min at full load
Recharge Time
8 hours
Networking
Remote Management Interface
RS-232
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Rack Mounting Kit
Included
Equipment Protection Value
250000 US Dollars
Features
Audible alarm, emergency power off, LCD display, LED indicators, built-in bypass switch
Compliant Standards
CSA, NOM, UL 1778, RoHS
Software / System Requirements
Software Included
TrippLite PowerAlert
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Dimensions & Weight
Width
44.4 cm
Depth
63.5 cm
Height
26.7 cm
Weight
87 kg
Dimensions & Weight (Shipping)
Shipping Width
80 cm
Shipping Depth
58.4 cm
Shipping Height
101 cm
Shipping Weight
150 kg
