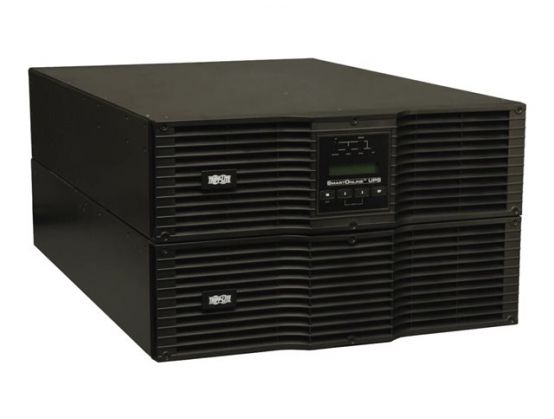

Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap C19 6URM - UPS - 7.2 kW - 8000 VA
Manufacture#: SU8000RT3UG
£3051.07
£3661.28 inc VAT
Checking delivery…
Product details
- UPS
- AC 200/208/220/230/240 V
- 7.2 kW
- 8000 VA
Payment options available at checkout
Main features
- Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap C19 6URM
- UPS
- AC 200/208/220/230/240 V
- 7.2 kW
- 8000 VA
- RS-232
- output connectors: 6
- 6U
- attractive black
Overview
SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, C19 outlets.
- 8kVA / 8000VA / 7200W on-line double-conversion 6U rack/tower UPS; Sine Wave
- Includes 3U UPS power module with maintenance bypass switch and 3U battery pack
- Extended runtime options, Interactive LCD interface, Economy-mode option, 0.9 power factor
- Add optional WEBCARDLX with latest version of PADM20 for enhanced remote management
- Hardwire 200-240V 50/60Hz input; C19 output; Configurable for 200/208/220/230/240V 50/60Hz output
Product Description
Tripp Lite UPS Smart Online 8000VA 7200W Rackmount 8kVA 208/240V 230V USB DB9 Manual Bypass Hot Swap C19 6URM - UPS - 7.2 kW - 8000 VA
Device Type
UPS - external
Rack Size
6U
Weight
25 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V ± 2%
Power Capacity
7.2 kW / 8000 VA
Input Connectors
Hardwire
Output connectors
6 x power IEC 60320 C19
Battery Form Factor
Internal
Run Time (Up To)
6 min
Networking
RS-232
Colour
Attractive black
Dimensions (WxDxH)
44.4 cm x 63.5 cm x 13.3 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - external
Battery Enclosure Type
Internal
Height (Rack Units)
6U
Colour
Attractive black
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 156 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
Hardwire
Power Output Connectors Details
6 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V ± 2% - 50/60 Hz
Power Capacity
7.2 kW / 8000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Battery
Voltage Provided
AC 240 V
Run Time (Up To)
6 min
Networking
Remote Management Interface
RS-232
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Equipment Protection Value
250000 US Dollars
Features
Audible alarm, LCD display, LED indicators
Compliant Standards
FCC Class A certified, CSA, NOM, UL 1778, RoHS
Software / System Requirements
Software Included
TrippLite PowerAlert
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Dimensions & Weight
Width
44.4 cm
Depth
63.5 cm
Height
13.3 cm
Weight
25 kg
Dimensions & Weight (Shipping)
Shipping Width
85.1 cm
Shipping Depth
58.4 cm
Shipping Height
107 cm
Shipping Weight
153 kg
