USB SCANNER WITH STAND
Checking delivery…
Product details
Barcode scanner
handheld
300 scan / sec
decoded
Payment options available at checkout
Main features
Newland HR1060 Sardina
Barcode scanner
handheld
300 scan / sec
decoded
USB
Overview
Designed as an entry-level 1D barcode scanner, the HR1060 Sardina provides excellent value for everyday use. The device is easy and comfortable to use and can stand up to everyday drops and bumps, making it a reliable investment.
Product Description

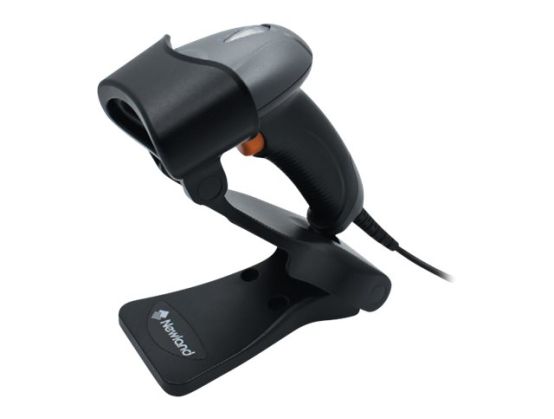

Newland HR1060 Sardina - barcode scanner
Type
Barcode scanner - handheld - USB - decoded
Colour
Black
Minimum Bar Width
5 mil
Scan Element Type
CCD - Red LED
Scan Speed
300 scan / sec
Connectivity Technology
Wired
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
6.8 cm x 10.1 cm x 14.5 cm
Weight
190 g
Manufacturer Warranty
5-year warranty
General
Type
Barcode scanner - handheld
Colour
Black
Barcode
Interface Type
USB
Minimum Bar Width
5 mil
Scan Element Type
CCD - Red LED
Light Source Wave Length
620 nm
Scan Mode
Single-pass
Scan Speed
300 scan / sec
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
30%
Decode Capability
Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, ISBN, GS1 DataBar, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, MSI-Plessey, Plessey, ISSN, ITF-14, Standard 2 of 5, EAN-8, EAN-13, ITF-6
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, 8 kV ESD protection (contact discharge)
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Included Accessories
Stand
Cables Included
1 x USB cable - external
Compliant Standards
FCC Part 15 B, RoHS, IP42, EMC Class B
Power
Power Device
Power adapter
Voltage
AC 120/230 V (50/60 Hz)
Electric Current Required
130 mA (peak), 115 mA (typical), 14 mA (standby)
Dimensions & Weight
Width
6.8 cm
Depth
10.1 cm
Height
14.5 cm
Weight
190 g
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.2 m to concrete
