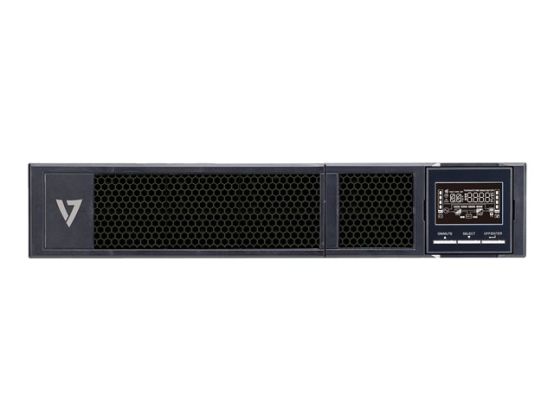

1500VA ON LINE UPS 230V 2U LCD 8 IEC RACK/TWR AVR ECO SNMP NC
Manufacture#: UPS2URM1500DC-NC
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
1500 Watt
1500 VA
Payment options available at checkout
Main features
V7 UPS2URM1500DC-NC
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
1500 Watt
1500 VA
1-phase
9 Ah
Ethernet 10/100, RS-232, USB
output connectors: 8
2U
19"
United Kingdom
black
Overview
V7's On-Line UPS is designed with performance in mind for our business customers. Our On-Line UPS is developed to handle demanding power conditions, where uptime and efficiency is critical. The V7 On-Line UPS provides double-conversion online power protection technology and advanced management features for server rooms, network closets, edge computing and other high demand environments and is suitable for verticals ranging from healthcare, retail, finance to manufacturing and even industrial automation.
Product Description
V7 UPS2URM1500DC-NC - UPS - 1500 Watt - 1500 VA
Device Type
UPS - rack-mountable / external
Rack Size
19" - 2U
Weight
15.5 kg
Localisation
United Kingdom
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240 V
Power Capacity
1500 Watt / 1500 VA
Input Connectors
1
Output connectors
8 x power IEC 60320 C13
Battery
Lead Acid - 9 Ah
Run Time (Up To)
2.9 min at full load
Networking
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP
Included Accessories
Rubber feet
Colour
Black
Dimensions (WxDxH)
43.8 cm x 41 cm x 8.8 cm
Manufacturer Warranty
3-year warranty
General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Rack Size
19"
Colour
Black
Localisation
United Kingdom
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
50/60 Hz
Input Connectors
1
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
50/60 Hz
Power Capacity
1500 Watt / 1500 VA
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
720 Joules
Efficiency
98%
Battery
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
2.9 min at full load ¦ 10 min at half load
Recharge Time
3 hours
Transfer Time
0 ms
Features
Sealed
Networking
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP
Expansion / Connectivity
Interfaces
1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45
Miscellaneous
Included Accessories
Rubber feet
Cables Included
2 x power cable - external - 1.8 m
Rack Mounting Kit
Included
Features
LCD display, audible alarm
Compliant Standards
RoHS, REACH
Software / System Requirements
Software Included
ViewPower
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 95%
Sound Emission
50 dBA
Dimensions & Weight
Width
43.8 cm
Depth
41 cm
Height
8.8 cm
Weight
15.5 kg
Dimensions & Weight (Shipping)
Shipping Width
50 cm
Shipping Depth
60 cm
Shipping Height
24 cm
Shipping Weight
17 kg
