VIEWSONIC

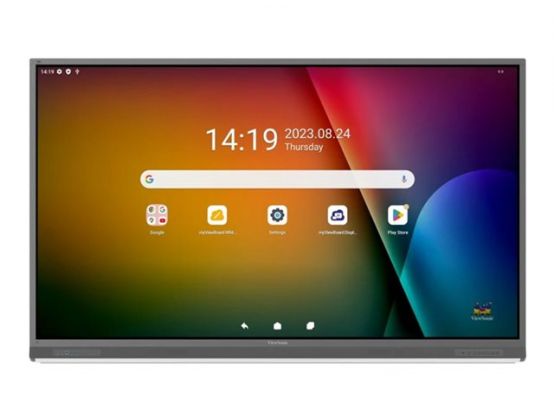

ViewSonic ViewBoard IFP8652-2F - 86" Diagonal Class (85.6" viewable) - IFP52-2F Series LED-backlit LCD display - interactive - with touchscreen (multi touch) / 8-microphone array - 4K UHD (2160p) 3840 x 2160 - Direct LED

Name: ViewSonic ViewBoard IFP8652-2F - 86" Diagonal Class (85.6" viewable) - IFP52-2F Series LED-backlit LCD display - interactive - with touchscreen (multi touch) / 8-microphone array - 4K UHD (2160p) 3840 x 2160 - Direct LED
Brand: VIEWSONIC
SKU: 1TACCCAB-088396
Price: 4605.13 GBP
Availability: InStock

SKU

1TACCCAB-088396

Manufacture#: IFP8652-2F

£3837.61

£4605.13 inc VAT

Checking delivery…

Product details

86" Diagonal Class (85.6" viewable)
IFP52-2F Series LED-backlit LCD display
interactive
with touchscreen (multi touch) / 8-microphone array

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ViewSonic ViewBoard IFP8652-2F
86" Diagonal Class (85.6" viewable)
IFP52-2F Series LED-backlit LCD display
interactive
with touchscreen (multi touch) / 8-microphone array
4K UHD (2160p) 3840 x 2160
Direct LED

Overview

ViewSonic ViewBoard IFP8652-2F IFP52-2F Series - 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for interactive communication

Specification

Product Description ViewSonic ViewBoard IFP8652-2F IFP52-2F Series - 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for interactive communication

Product Type LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array

Diagonal Class 86"

Diagonal Size 85.6"

Commercial Use Yes - interactive

Resolution 3840 x 2160

Display Format 4K UHD (2160p)

Frame Rate & Enhancement Technology 60 Hz Refresh Rate

Video Interface HDMI

HDMI Ports Qty 3 ports

Connectivity LAN

PC Interface VGA (HD-15), DisplayPort, USB-C

Technology VA

LCD Backlight Technology Direct LED

Image Aspect Ratio 16:9

TV Tuner No tuner

Speaker System 2 speakers, subwoofer

Storage Capacity 64 GB

USB Yes

Included Accessories Remote control, camera plate, 5 clamps, 8 x screws, RS232 adapter, myViewBoard WhiteBoard software, 2 x touch pen

Voltage AC 100-240 V

Power Consumption Operational 148.12 Watt

Dimensions (WxDxH) 197.116 cm x 12.138 cm x 121.254 cm

Weight 70 kg

Environmental Standards ENERGY STAR Qualified, EPEAT Silver

General

Product Type LED-backlit LCD flat panel display

Power Consumption Operational 148.12 Watt

Diagonal Class 86"

Diagonal Size 85.6"

Commercial Use Yes - interactive

Combined With Touchscreen (multi touch) / 8-microphone array

Series IFP52-2F Series

Operating System Android OS 13

TV Tuner No tuner

TV Tuner Presence No

Sensors Light sensor

Video Interface HDMI

HDMI Ports Qty 3 ports

PC Interface VGA (HD-15), DisplayPort, USB-C

Modes Landscape mode

Width 197.116 cm

Depth 12.138 cm

Height 121.254 cm

Weight 70 kg

Display

LCD Display Technology VA

Resolution 3840 x 2160

Display Format 4K UHD (2160p)

Image Aspect Ratio 16:9

Frame Rate & Enhancement Technology 60 Hz Refresh Rate

LCD Backlight Technology Direct LED

Coating Anti-glare, 7H Hard

Image Contrast Ratio 4000:1

Dynamic Contrast Ratio 5000:1

Brightness 450 cd/m²

Viewing Angle 178 degrees

Viewing Angle (Vertical) 178 degrees

Touchpoints Qty 40

Response Time 7 ms

Backlight Life 50,000 hours

Features Eye Care, Open Pluggable Specification slot, Flicker free technology, Ultra Fine Touch Technology (UFT), USB SmartPort, 1.07 billion colours, CEC Support, ARC Support through HDMI, Pen-On-Paper technology

Stands & Mounts

Flat Panel Mount Interface 800 x 600 mm

VESA Compatibility Yes

Media Player

USB Port Yes

Configuration ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 64 GB

Remote Control

Type Remote control

Battery Form Factor AAA type

Battery Included Yes

Battery Included Qty 2

Audio System

Speaker System 2 speakers, subwoofer

Output Power / Total 40 Watt

Features Built-in 8-array microphone

Speakers 2 x main channel speaker - 20 Watt ¦ 1 x subwoofer - 20 Watt

Network & Internet Multimedia

Connectivity LAN

LAN Protocol Gigabit Ethernet

Connections

Connector Type 3 x HDMI input ¦ VGA input ¦ DisplayPort input ¦ RS-232 input ¦ Audio input ¦ 2 x LAN ¦ 4 x USB 3.0 ¦ USB 2.0 - rear ¦ Audio output ¦ HDMI output ¦ SPDIF output ¦ 3 x USB 3.0 ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery - front ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery - rear ¦ USB-C data transfer only - rear

Miscellaneous

Included Accessories Camera plate, 5 clamps, 8 x screws, RS232 adapter, myViewBoard WhiteBoard software, 2 x touch pen

Cables Included Touch cable - 3 m ¦ RS-232 adapter ¦ HDMI cable - 3 m

Compliant Standards FCC Class B certified, CB, RoHS, WEEE, LVD, ERP, CE/EMC, REACH SvHC, DOE, Energy Efficiency Label (EEL), RoHS DoC, Green BOM, US NRTL w/ CA, Google EDLA

Sustainability Information

EPEAT Compliant EPEAT Silver

ENERGY STAR Certified Yes

Power

Power Device Power supply

Input Voltage AC 100-240 V

Power Consumption (Off Mode) 0.5 Watt

Dimensions & Weight (Shipping)

Width (Shipping) 211.6 cm

Depth (Shipping) 22.5 cm

Height (Shipping) 133 cm

Weight (Shipping) 83 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% RH (non-condensing)
