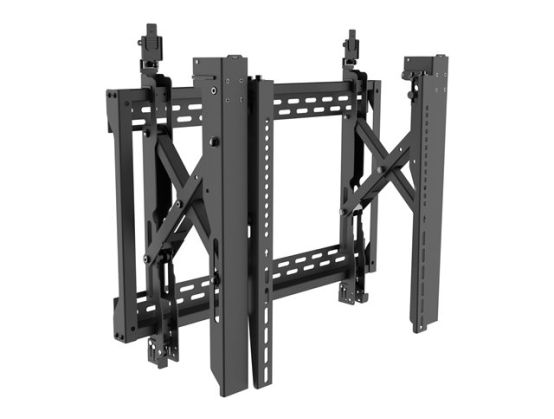

Aligning displays on a video wall is painstaking, so every detail has been thought about on this mount to ensure it is as fast as possible to install, and as easy as possible to adjust with precision.
- Wall mount for displays with mounting points up to 600 x 400 mm apart
- Pop-out style for fast access and adjustment
- Fine tilt, rotation, depth, and height adjustment by thumbscrews
Landscape or portrait
This mount supports displays in either portrait or landscape. In portrait format the display must be more than 650 mm (26″) wide and must be VESA 400 x 400 mm or less.
Minimal tools
Wherever possible Vision uses thumbscrews which dramatically speed up installation and help with faster adjustment.
Display fixing screws
Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
Pop-out
A light push on the display releases the scissor pop-out mechanism, pushing the display out towards you. Plastic tongues are included which are put into place once you are done to avoid accidental pop-outs.
Quick-release
Fix the vertical arms to the rear of the display, then lower this assembly onto the wall bracket. It will latch into place. It can be removed by pushing a quick release lever.
Tilt
Adjust tilt by -2 to 4° with thumbscrews positioned at the top of the vertical display arms.
Rotation and height
Adjust rotation by -3 to 3° with thumbscrews, also positioned at the top of the display arms.
Depth adjustment
The depth of each side can be adjusted independently with a hex key on the side of the vertical display arms.
45-70″ displays
Fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 400mm tall apart.
Depth
The minimum depth in place is 95 mm (3.7″), and when it pops out it comes 285 mm (11.2″).
Lockable
It latches into place and can be locked with a padlock (not included) for further security.
