3.5IN 26.1MM 8192GB 256MB SATA 7200RPM ULTRA 512E TCG DC HC320
Checking delivery…
Product details
Hard drive
encrypted
8 TB
internal (desktop)
Payment options available at checkout
Main features

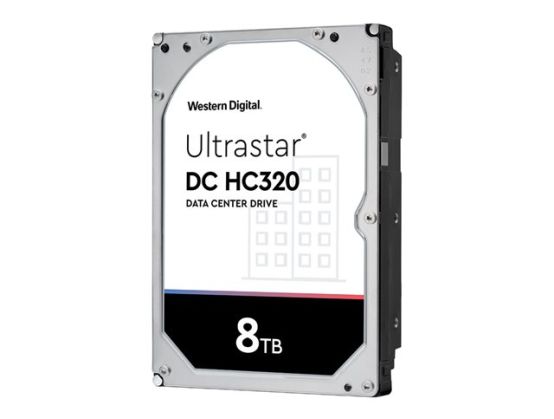

WD Ultrastar DC HC320 HUS728T8TAL5205
Hard drive
encrypted
8 TB
internal (desktop)
3.5" (in 3.5" carrier)
SAS 12Gb/s
7200 rpm
buffer: 256 MB
FIPS
TCG encryption with FIPS
Overview
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on lower capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle heavy workloads, Ultrastar DC HC320 is a drive that helps address economic and access requirements of many traditional IT workloads. The Ultrastar DC HC320 is designed for traditional storage and server applications as well as distributed and scalable computing, including block and file storage architectures.
Product Description
WD Ultrastar DC HC320 HUS728T8TAL5205 - hard drive - 8 TB - SAS 12Gb/s
Type
Hard drive - internal (desktop)
Capacity
8 TB
Hardware Encryption
Yes
Encryption Algorithm
FIPS
Form Factor
3.5" (in 3.5" carrier)
Interface
SAS 12Gb/s
Buffer Size
256 MB
Spindle Speed
7200 rpm
Features
512 emulation ( 512e )
Dimensions (WxDxH)
101.6 mm x 147 mm x 26.1 mm
Weight
715 g
Manufacturer Warranty
5-year warranty
General
Device Type
Hard drive - internal (desktop)
Capacity
8 TB
Hardware Encryption
Yes
Encryption Algorithm
FIPS
Form Factor
3.5"
Interface
SAS 12Gb/s
Buffer Size
256 MB
Features
512 emulation ( 512e )
Width
101.6 mm
Depth
147 mm
Height
26.1 mm
Weight
715 g
Performance
Internal Data Rate
243 MBps (read) / 255 MBps (write)
Seek Time
8 ms (average) / 8.6 ms (max)
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,000,000 hours
24x7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SAS 12 Gb/s
Compatible Bay
3.5" or 3.5" (with included bay adapter)
Power
Power Consumption
12.8 Watt (typical) ¦ 8.4 Watt (idle)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Shock Tolerance (operating)
70 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)
300 g @ 2 ms half-sine wave
Vibration Tolerance (operating)
0.67 g @ 5-500 Hz
Vibration Tolerance (non-operating)
1.04 g @ 2-200 Hz
Sound Emission
36 dBA
