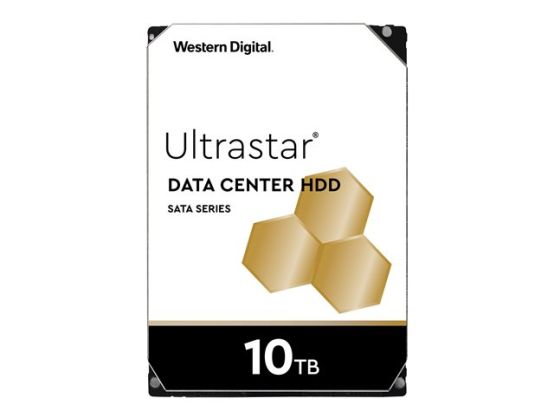

WD Ultrastar DC HC510 HUH721010ALE604 - hard drive - 10 TB - SATA 6Gb/s
Checking delivery…
Product details
Hard drive
10 TB
internal
3.5"
Payment options available at checkout
Main features
WD Ultrastar DC HC510 HUH721010ALE604
Hard drive
10 TB
internal
3.5"
SATA 6Gb/s
7200 rpm
buffer: 256 MB
Overview
Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard drives. The DC HC500 series is designed for public and private cloud environments.
Product Description
WD Ultrastar DC HC510 HUH721010ALE604 - hard drive - 10 TB - SATA 6Gb/s
Type
Hard drive - internal
Capacity
10 TB
Form Factor
3.5"
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Buffer Size
256 MB
Spindle Speed
7200 rpm
Features
Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), advanced format 512e, Dynamic fly height technology
Dimensions (WxDxH)
101.6 mm x 147 mm x 26.1 mm
Weight
660 g
Manufacturer Warranty
5-year warranty
General
Device Type
Hard drive - internal
Capacity
10 TB
Form Factor
3.5"
Interface
SATA 6Gb/s
Buffer Size
256 MB
Bytes per Sector
512
Features
Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), advanced format 512e, Dynamic fly height technology
Width
101.6 mm
Depth
147 mm
Height
26.1 mm
Weight
660 g
Performance
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
249 MBps
Seek Time
8 ms (average) / 8.6 ms (max)
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
3.5"
Power
Power Consumption
6.8 Watt (active) ¦ 5 Watt (idle)
Miscellaneous
Compliant Standards
RoHS 2011/65/EU
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Shock Tolerance (operating)
70 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)
300 g @ 2 ms half-sine wave
Vibration Tolerance (operating)
0.67 g @ 5-500 Hz
Vibration Tolerance (non-operating)
1.04 g @ 2-200 Hz
