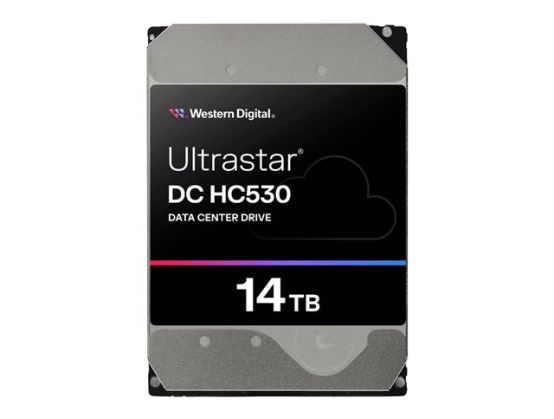

WD Ultrastar DC HC530 WUH721414AL5205 - hard drive - 14 TB - SATA 6Gb/s
Checking delivery…
Product details
Hard drive
encrypted
14 TB
internal
Payment options available at checkout
Main features
WD Ultrastar DC HC530 WUH721414AL5205
Hard drive
encrypted
14 TB
internal
3.5"
SATA 6Gb/s
7200 rpm
buffer: 512 MB
FIPS
Self-Encrypting Drive (SED)
Overview
Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of HDDs. The DC HC500 series is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical.
Product Description
WD Ultrastar DC HC530 WUH721414AL5205 - hard drive - 14 TB - SATA 6Gb/s
Type
Hard drive - internal
Capacity
14 TB
Hardware Encryption
Yes
Encryption Algorithm
FIPS
Form Factor
3.5"
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Buffer Size
512 MB
Spindle Speed
7200 rpm
Features
Rotational Vibration Safeguard (RVS), Dual Stage Actuator (DSA), HelioSeal, advanced format 512e, 24x7 availability, Conventional magnetic recording (CMR), Two-Dimensional Magnetic Recording (TDMR)
Dimensions (WxDxH)
101.6 mm x 147 mm x 26.1 mm
Weight
690 g
Manufacturer Warranty
5-year warranty
General
Device Type
Hard drive - internal
Capacity
14 TB
Hardware Encryption
Yes
Encryption Algorithm
FIPS
Form Factor
3.5"
Interface
SATA 6Gb/s
Buffer Size
512 MB
Features
Rotational Vibration Safeguard (RVS), Dual Stage Actuator (DSA), HelioSeal, advanced format 512e, 24x7 availability, Conventional magnetic recording (CMR), Two-Dimensional Magnetic Recording (TDMR)
Width
101.6 mm
Depth
147 mm
Height
26.1 mm
Weight
690 g
Performance
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
267 MBps
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
3.5"
Power
Power Consumption
6 Watt (typical) ¦ 5.5 Watt (idle)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
60 °C
Shock Tolerance (operating)
70 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)
300 g @ 2 ms half-sine wave
Vibration Tolerance (operating)
0.67 g @ 5-500 Hz
Vibration Tolerance (non-operating)
1.04 g @ 2-200 Hz
