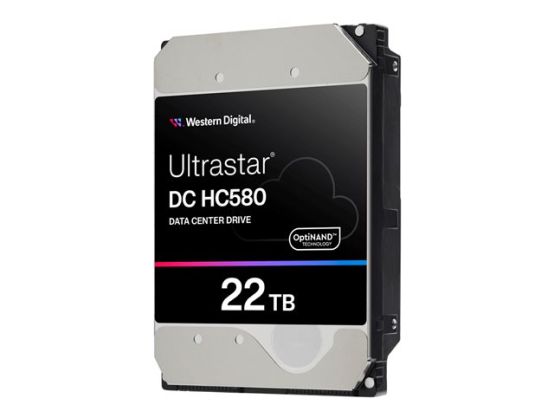

The WD Ultrastar DC HC580 redefines enterprise storage with its 22 TB capacity, tailored for high-demand systems requiring around-the-clock operation. This internal hard drive integrates seamlessly into existing infrastructure, thanks to its Serial ATA-600 interface, ensuring compatibility and easy deployment. With features like Energy-Assisted Magnetic Recording (EAMR) and HelioSeal technology, it not only offers increased storage density but also operates with exceptional energy efficiency. The drive's advanced format options, including 4Kn and 512e, provide flexible configuration options to meet specific system requirements. Moreover, the inclusion of ArmorCache and Triple State Actuator (TSA) technologies enhances data safety and accuracy, making the WD Ultrastar DC HC580 a smart choice for businesses looking to optimize their data center's performance and reliability.
Product DescriptionWD Ultrastar DC HC580 WUH722422ALE6L1 - hard drive - 22 TB - SATA 6Gb/s
TypeHard drive - internal
Capacity22 TB
Hardware EncryptionYes
Form Factor3.5"
InterfaceSATA 6Gb/s
Data Transfer Rate600 MBps
Buffer Size512 MB
Spindle Speed7200 rpm
FeaturesHelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), Conventional magnetic recording (CMR), Massive Scale Out (MSO)
Dimensions (WxDxH)101.6 mm x 147 mm x 26.1 mm
Weight670 g
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypeHard drive - internal
Capacity22 TB
Hardware EncryptionYes
Form Factor3.5"
InterfaceSATA 6Gb/s
Buffer Size512 MB
FeaturesHelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), Conventional magnetic recording (CMR), Massive Scale Out (MSO)
Width101.6 mm
Depth147 mm
Height26.1 mm
Weight670 g
Performance
Drive Transfer Rate600 MBps (external)
Internal Data Rate291 MBps
Average Latency4.16 ms
Spindle Speed7200 rpm
Reliability
MTBF2,500,000 hours
24x7 OperationYes
Non-Recoverable Errors1 per 10^15
Load / Unload Cycles600,000
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay3.5"
Power
Power Consumption8.5 Watt (random read/write) ¦ 5.5 Watt (idle)
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Environmental Parameters
Min Operating Temperature5 °C
Max Operating Temperature60 °C
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Shock Tolerance (operating)40 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)200 g @ half-sine wave
