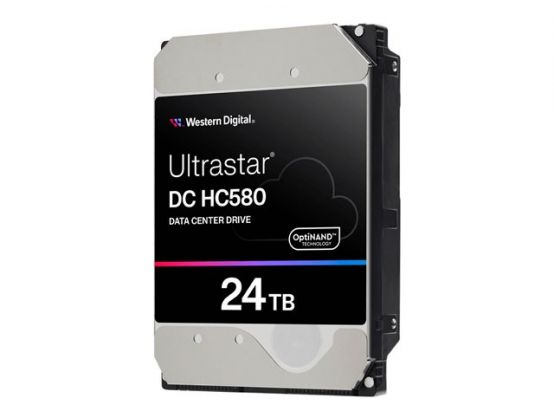

The WD Ultrastar DC HC580 hard drive from Western Digital enhances storage capabilities for enterprise environments, offering a substantial 24 TB of storage space. This internal hard drive is designed for continuous operation, ensuring reliability and performance in intensive workloads. With a 7200 rpm spindle speed and a 512 MB buffer size, it delivers fast access times and efficient data transfer rates of up to 600 MBps. The integration of advanced technologies such as ArmorCache, Energy-Assisted Magnetic Recording (EAMR), and HelioSeal not only enhances data integrity and storage density but also optimizes power consumption, making it a cost-effective solution for large-scale storage applications. Additionally, the drive's durability is supported by a high load/unload cycle count and robust shock and vibration tolerance, ensuring long-term reliability. For organizations prioritizing data security, the Self-Encrypting Drive (SED) feature with hardware encryption offers an essential layer of protection. With a mean time between failures (MTBF) of 2,500,000 hours, the WD Ultrastar DC HC580 is a dependable choice for data centers looking to maximize storage efficiency and data security.
Product DescriptionWD Ultrastar DC HC580 WUH722424ALE6L1 - hard drive - 24 TB - SATA 6Gb/s
TypeHard drive - internal
Capacity24 TB
Hardware EncryptionYes
Form Factor3.5"
InterfaceSATA 6Gb/s
Data Transfer Rate600 MBps
Buffer Size512 MB
Spindle Speed7200 rpm
FeaturesHelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), Conventional magnetic recording (CMR), Massive Scale Out (MSO)
Dimensions (WxDxH)101.6 mm x 147 mm x 26.1 mm
Weight670 g
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypeHard drive - internal
Capacity24 TB
Hardware EncryptionYes
Form Factor3.5"
InterfaceSATA 6Gb/s
Buffer Size512 MB
FeaturesHelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), Conventional magnetic recording (CMR), Massive Scale Out (MSO)
Width101.6 mm
Depth147 mm
Height26.1 mm
Weight670 g
Performance
Drive Transfer Rate600 MBps (external)
Internal Data Rate298 MBps
Average Latency4.16 ms
Spindle Speed7200 rpm
Reliability
MTBF2,500,000 hours
24x7 OperationYes
Non-Recoverable Errors1 per 10^15
Load / Unload Cycles600,000
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay3.5"
Power
Power Consumption8.5 Watt (random read/write) ¦ 5.5 Watt (idle)
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Environmental Parameters
Min Operating Temperature5 °C
Max Operating Temperature60 °C
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Shock Tolerance (operating)40 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)200 g @ half-sine wave
