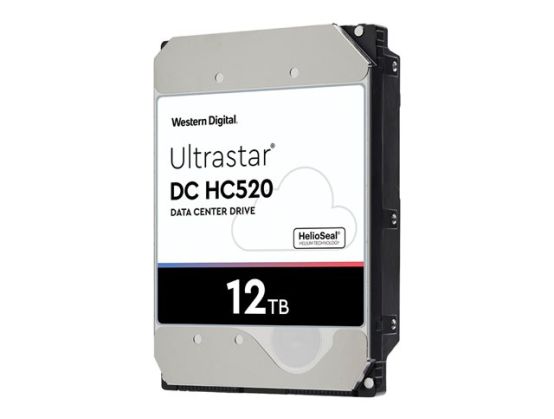

WD Ultrastar HE12 HUH721212AL5205 - hard drive - 12 TB - SAS 12Gb/s
Checking delivery…
Product details
Hard drive
encrypted
12 TB
internal
Payment options available at checkout
Main features
WD Ultrastar HE12 HUH721212AL5205
Hard drive
encrypted
12 TB
internal
3.5"
SAS 12Gb/s
7200 rpm
buffer: 256 MB
TCG encryption with FIPS
Overview
Laying the foundation for a worry-free data center, HGST delivers capacity to conquer the data explosion - Ultrastar HE12 HDD. The stable internal environment created by advanced technology enables a different disk design, increasing the capacity.
Product Description
WD Ultrastar HE12 HUH721212AL5205 - hard drive - 12 TB - SAS 12Gb/s
Type
Hard drive - internal
Capacity
12 TB
Hardware Encryption
Yes
Form Factor
3.5"
Interface
SAS 12Gb/s
Data Transfer Rate
1.2 GBps
Buffer Size
256 MB
Spindle Speed
7200 rpm
Features
Perpendicular Magnetic Recording (PMR), Advanced Format technology, Secure Erase function, HelioSeal, advanced format 512e, Enterprise, 24x7 availability
Dimensions (WxDxH)
101.6 mm x 147 mm x 26.1 mm
Weight
660 g
Manufacturer Warranty
5-year warranty
General
Device Type
Hard drive - internal
Capacity
12 TB
Hardware Encryption
Yes
Form Factor
3.5"
Interface
SAS 12Gb/s
Buffer Size
256 MB
Bytes per Sector
512
Features
Perpendicular Magnetic Recording (PMR), Advanced Format technology, Secure Erase function, HelioSeal, advanced format 512e, Enterprise, 24x7 availability
Width
101.6 mm
Depth
147 mm
Height
26.1 mm
Weight
660 g
Performance
Drive Transfer Rate
1.2 GBps (external)
Internal Data Rate
255 MBps
Seek Time
8 ms (average)
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Non-Recoverable Errors
1 per 10^15
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SAS 12 Gb/s
Compatible Bay
3.5"
Power
Power Consumption
9.8 Watt (typical) ¦ 6.1 Watt (idle)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Shock Tolerance (operating)
70 g @ 2 ms half-sine wave
Shock Tolerance (non-operating)
300 g @ 2 ms half-sine wave
Vibration Tolerance (operating)
0.67 g @ 5-500 Hz
Vibration Tolerance (non-operating)
1.04 g @ 2-200 Hz
