Loudspeaker 10" Cone 700W Max 8 Ohms Impedance 50Hz - 20kHz Frequency Range
Checking delivery…
Product details
Speakers
for PA system
350 Watt
2-way
Payment options available at checkout
Main features

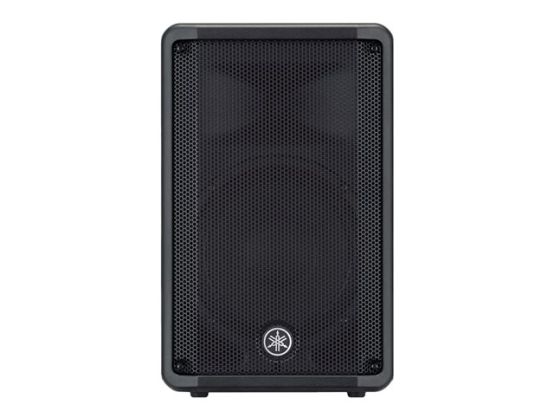

Yamaha CBR 10
Speakers
for PA system
350 Watt
2-way
black
Overview
The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.
Product Description
Yamaha CBR 10 - speakers - for PA system
Product Type
Speakers - for PA system
Speaker Type
2-way - passive
Continuous Power
350 Watt
Peak Power
700 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Colour
Black
Dimensions (WxDxH)
30.8 cm x 28.9 cm x 49.3 cm
Weight
9.4 kg
General
Product Type
Speakers - for PA system
Enclosure Colour
Black
Enclosure Material
Plastic
Speaker System
Speaker Type
2-way - passive
Continuous Power
350 Watt
Peak Power
700 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
123 dB
Sensitivity
94 dB
Crossover Frequency
2800Hz
Coverage
90° x 60°
Speaker System Details
Driver Details
Speaker: woofer driver - 10" - ferrite ¦ Speaker: tweeter driver - 1" - ferrite - compression driver
Connections
Connector Type
Speakers input (phone 6.3 mm) ¦ Speakers input (speakON NL4 (4 pole))
Dimensions & Weight
Width
30.8 cm
Depth
28.9 cm
Height
49.3 cm
Weight
9.4 kg
