Loudspeaker 15" Cone 700W Max 8 Ohms Impedance 48Hz - 20kHz Frequency Range
Checking delivery…
Product details
Speakers
for PA system
500 Watt
2-way
Payment options available at checkout
Main features
Yamaha CBR 15
Speakers
for PA system
500 Watt
2-way
black
Overview
The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.
Product Description

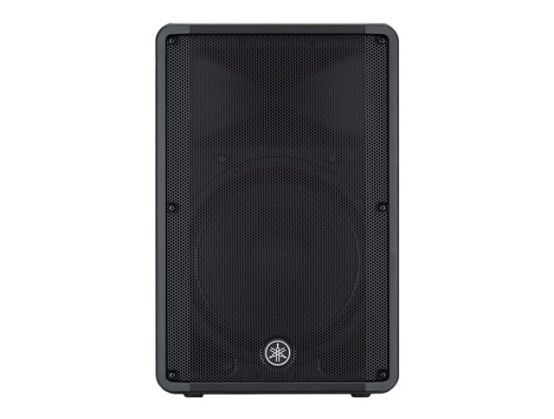

Yamaha CBR 15 - speakers - for PA system
Product Type
Speakers - for PA system
Speaker Type
2-way - passive
Continuous Power
500 Watt
Peak Power
1000 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Colour
Black
Dimensions (WxDxH)
45.5 cm x 37.8 cm x 70 cm
Weight
17.7 kg
General
Product Type
Speakers - for PA system
Enclosure Colour
Black
Enclosure Material
Plastic
Speaker System
Speaker Type
2-way - passive
Continuous Power
500 Watt
Peak Power
1000 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
126 dB
Sensitivity
96 dB
Crossover Frequency
2100Hz
Coverage
90° x 60°
Speaker System Details
Driver Details
Speaker: woofer driver - 15" - ferrite ¦ Speaker: tweeter driver - 1.4" - ferrite - compression driver
Connections
Connector Type
Speakers input (phone 6.3 mm) ¦ Speakers input (speakON NL4 (4 pole))
Dimensions & Weight
Width
45.5 cm
Depth
37.8 cm
Height
70 cm
Weight
17.7 kg
