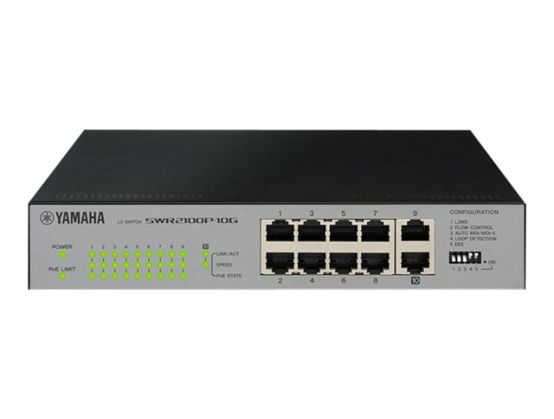

Yamaha SWR2100P-10G - switch - 10 ports
Manufacture#: SWR2100P10G
Checking delivery…
Product details
Switch
9 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink)
desktop
PoE+ (70 W)
Payment options available at checkout
Main features
Yamaha SWR2100P-10G
Switch
9 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink)
desktop
PoE+ (70 W)
Overview
Yamaha has used its knowledge of both IT and pro audio to provide "SWR2100P series" simple L2 switch that has been optimized for networked audio installations. The switch can take advantage of "Yamaha LAN Monitor" a dedicated Windows application that provides 'network visibility' for comprehensive monitoring and control.
Product Description
Yamaha SWR2100P-10G - switch - 10 ports
Device Type
Switch - 10 ports
Subtype
Gigabit Ethernet
Ports
9 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
70 W
Features
Flow control, Layer 2 switching, auto-uplink (auto MDI/MDI-X)
Compliant Standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
22 cm x 25 cm x 4.05 cm
Weight
1.8 kg
General
Device Type
Switch - 10 ports
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
9 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
70 W
Features
Flow control, Layer 2 switching, auto-uplink (auto MDI/MDI-X)
Compliant Standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at
Status Indicators
Port transmission speed, power, PoE, link/activity
Expansion / Connectivity
Interfaces
9 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 uplink
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
90 Watt
Miscellaneous
Rack Mounting Kit
Optional
Dimensions & Weight
Width
22 cm
Depth
25 cm
Height
4.05 cm
Weight
1.8 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 80% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
50 °C
Humidity Range Storage
10 - 90% (non-condensing)
