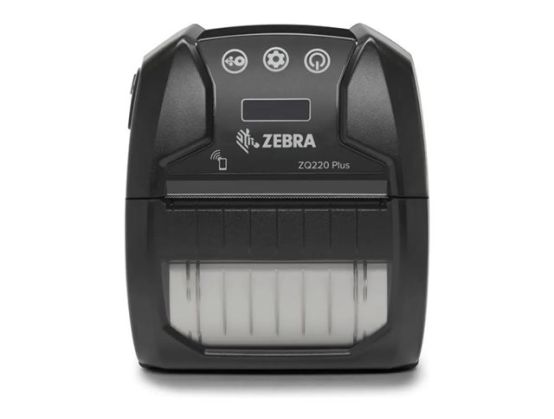

The Zebra ZQ200 Series ZQ220 Plus printer is a high-performance, portable printing solution designed to meet the needs of businesses requiring efficient, on-the-go printing capabilities. With support for a wide range of barcode standards, this printer ensures compatibility with various industry requirements, making it a versatile choice for a variety of applications. Its robust connectivity options, including Bluetooth 5.0 LE, NFC, and USB 2.0, allow for easy integration into existing systems, enhancing workflow efficiency. Built to withstand the challenges of demanding environments, the ZQ220 Plus boasts an IP54 rating for dust and water resistance, alongside a durable design that's resistant to drops. This resilience, combined with a high-capacity 2500 mAh lithium-ion battery, ensures reliable performance throughout the workday. Additionally, its compact size and high-speed printing capability of up to 50 mm/s make it an ideal solution for businesses needing a portable printer that doesn't compromise on speed or quality.
Product DescriptionZebra ZQ200 Series ZQ220 Plus - receipt printer - B/W - direct thermal
Printer TypeReceipt printer - direct thermal - B/W
Form FactorPortable
Weight390 g
Max Media SizeRoll (7.62 cm)
Max Media Size (Custom)80 mm
Print SpeedUp to 50 mm/sec - max speed
Max Resolution (B&W)203 dpi
InterfaceUSB 2.0, NFC, Bluetooth 5.0 LE
RAM Installed (Max)8 MB SDRAM
Flash Memory Installed (Max)16 MB
Language SimulationComtec Printer Control Language (CPCL), EPSON ESC/POS
BarcodesCode 93, Code 39, UCC/EAN-128, Code 128, Codabar, Interleaved 2 of 5, UPC-A / E, Addendum 2 of 5, Composite, PDF417, Micro PDF417, MaxiCode, QR code, GS1 DataBar (RSS), Aztec, MSI-Plessey, Data Matrix
Media TypeLabels, receipt paper, linerless labels, tags, continuous paper
FeaturesBlack Mark sensor, paper out sensor, gap sensor
NetworkingPrint server
BatteryRequired 1 Lithium Ion Included Qty 1
Manufacturer Warranty1-year warranty
Dimensions (WxDxH)11.44 cm x 12.98 cm x 5.89 cm
Extended Specification
General
Printer TypeReceipt printer - direct thermal - monochrome
Printer
Print SpeedUp to 50 mm/sec - max speed
Connectivity TechnologyWireless
InterfaceUSB 2.0, NFC, Bluetooth 5.0 LE
Max Resolution (B&W)203 dpi
Language SimulationComtec Printer Control Language (CPCL), EPSON ESC/POS
FeaturesBlack Mark sensor, paper out sensor, gap sensor
Fonts IncludedBitmapped
BarcodesCode 93, Code 39, UCC/EAN-128, Code 128, Codabar, Interleaved 2 of 5, UPC-A / E, Addendum 2 of 5, Composite, PDF417, Micro PDF417, MaxiCode, QR code, GS1 DataBar (RSS), Aztec, MSI-Plessey, Data Matrix
RAM
RAM Installed (Max)8 MB
Technology / Form FactorSDRAM
Flash Memory
Flash Memory16 MB
Media Handling
Media TypeLabels, receipt paper, linerless labels, tags, continuous paper
Max Media SizeRoll (7.62 cm)
Max Media Size (Custom)80 mm
Media SizesRoll (5.8 cm), Roll (5.08 cm), Roll (7.62 cm)
Max Printing Width72 mm
Media Thickness Range0.058 mm - 0.1575 mm
Roll Maximum Outer Diameter50 mm
Roll Core Diameter12.7 mm
Media Feeders1 x manual - 1 roll - Roll (7.62 cm)
Networking
NetworkingPrint server
Expansion / Connectivity
Connections1 x USB 2.0 - 24 pin USB-C
Miscellaneous
Included AccessoriesBelt clip
Cables Included1 x USB-C to USB-A cable
FeaturesOLED display, drop-resistant
Compliant StandardsIP54, EN 55032, VCCI-CISPR 32, ETSI EN 301 489-17, EN 55035, BIS, EN 62368, IEC 62368, WPC, EN 62479, EN 300 328, ANATEL, IFT, SDPPI, IMDA
