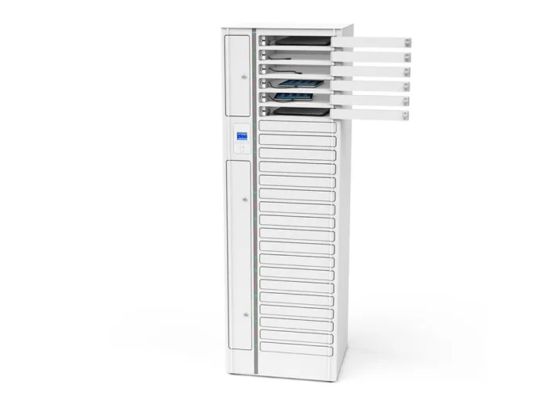

Zioxi Volt 1:1 charging locker tower for 24 laptops, AC adapter sockets and storage, onView smart locker hybrid (LF, HID) RFID access control, web based locker and user remote management.
SKU
SYSSEC-2319
Manufacture#: VLS1-24S-M-H-G-UK
Product details
Locker compartment size is suitable for most mobile computing devices with up to 17” screens including laptops and Chromebooks
High density, compact & secure laptop, Chromebook and tablet charging & storage
Elegant, stylish and modern aesthetic which looks great in any environment
Simple to use, smart charging locker with web portal to control users, lockers and power usage
Locker compartment size is suitable for most mobile computing devices with up to 17” screens including laptops and Chromebooks
High density, compact & secure laptop, Chromebook and tablet charging & storage
Elegant, stylish and modern aesthetic which looks great in any environment
Contactless operation using RFID cards
Overview
The onView smart laptop charging lockers provide access control using RFID cards and fobs, with the ability to simply configure different locker modes including loan, public, break – fix and private. The onView web portal and app provide locker and user management from anywhere plus an extensive reporting suite, audit logs, powerful rules engine and the ability to maximise low cost, green charging.
Product DescriptionZioxi Volt 1:1 charging locker tower for 24 laptops, AC adapter sockets and storage, onView smart locker hybrid (LF, HID) RFID access control, web based locker and user remote management.
ConstructionAluminium double skin front and doors, white melamine-faced MDF carcase.
Integrated USB-C laptop power (-UC)USB Type C ports support the Power Delivery (PD3.0) specification with voltage / maximum current combinations of 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/3A, so suitable for charging all types of Type C enabled devices including laptops, Chromebooks, tablets and phones at up to 60W per port.
AC power sockets (-MMains outlets for use with AC chargers housed in the front accessible power bay. Supports device AC wall & brick style power adapters (up to 65W). Call us for solutions for extra large wall chargers such as those supplied with some large Macbooks and Lenovo laptops. Requires 1 external power socket. Supplied with 1 mains lead.
ConnectivityConnectivity from each onView locker to the zioxi cloud service is via 2.4Ghz WiFi utilising existing establishment Wireless Access Points. An SSID configured for only the 2.4GHz frequency is essential (using the same SSID name for both a 2.4GHz and a 5GHz network will cause connectivity issues). Most WiFi security protocols are supported, with the exception of captive security requiring the dynamic entry of user ID and password. This WAP based approach provides flexibility in terms of trolley locations and requires no additional network infrastructure. Firewall & filtering access out to the web may need local configuration.
MiFare RFID access control (-O)Support for MiFare 13.56MHz access cards and fobs using the ISO/IEC 14443 standards.
Hybrid RFID access control (-H)Support for most other 13.56MHz high frequency and 125kHz low frequency access cards and fobs.
WarrantyWarranty
VariationsMinimum 16 iPads, Maximum 24 Laptops. Model Variations Dependent. Speak to our team to discuss your capacity needs.
