GS1300-10HP 10 PORT UNMANGED CCTV POE SWITCH LONG RANGE 130W
Manufacture#: GS1300-10HP-GB0101F
Checking delivery…
Product details
Switch
8 x 10/100/1000 (PoE+) + 1 x combo Gigabit Ethernet/Gigabit SFP
desktop
PoE+ (130 W)
Payment options available at checkout
Main features

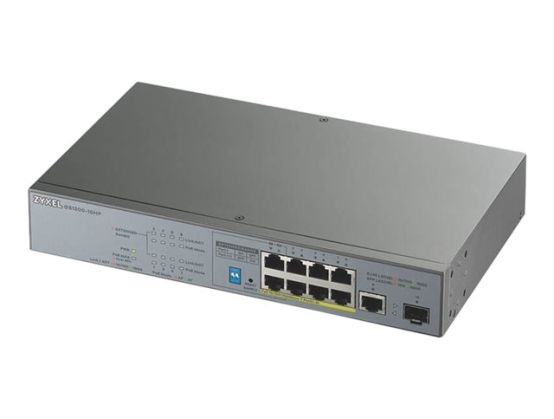

Zyxel GS1300-10HP
Switch
8 x 10/100/1000 (PoE+) + 1 x combo Gigabit Ethernet/Gigabit SFP
desktop
PoE+ (130 W)
Overview
The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.
Product Description
Zyxel GS1300-10HP - switch - 8 ports
Device Type
Switch - 8 ports
Enclosure Type
1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 1 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
130 W
Performance
Switching capacity: 20 Gbps ¦ Forwarding rate: 14.8 Mpps
MAC Address Table Size
8K entries
Features
Flow control, Energy Efficient Ethernet, Class of Service (CoS), 525KB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
26.7 cm x 16.2 cm x 4.4 cm
Weight
1.65 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
Switch - 8 ports
Enclosure Type
Desktop 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 1 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
130 W
Performance
Switching capacity: 20 Gbps ¦ Forwarding rate: 14.8 Mpps
MAC Address Table Size
8K entries
Features
Flow control, Energy Efficient Ethernet, Class of Service (CoS), 525KB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Status Indicators
Power, PoE, link/activity
Expansion / Connectivity
Interfaces
8 x Gigabit LAN RJ-45 PoE+ ¦ 1 x Gigabit LAN RJ-45/SFP uplink
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories
Wall mounting kit
Rack Mounting Kit
Included
MTBF
394,567 hours
Compliant Standards
EMC, FCC, RoHS, BSMI CNS 13438, C-Tick Class A, LVD, CNS 14336-1, EN 62368-1
Localisation
United Kingdom
Dimensions & Weight
Width
26.7 cm
Depth
16.2 cm
Height
4.4 cm
Weight
1.65 kg
Dimensions & Weight (Shipping)
Shipping Width
33.7 cm
Shipping Depth
22.5 cm
Shipping Height
8.9 cm
Shipping Weight
2.5 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
