General
Device Type

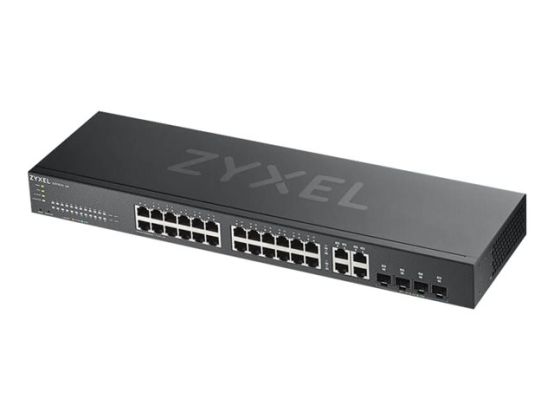

Switch - 24 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x combo Gigabit SFP
Performance
Switching capacity: 56 Gbps ¦ Forwarding rate: 42 Mpps
Capacity
QoS hardware queues per port: 8
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, MLD snooping, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, Class of Service (CoS), IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
RAM
256 MB
Flash Memory
32 MB
