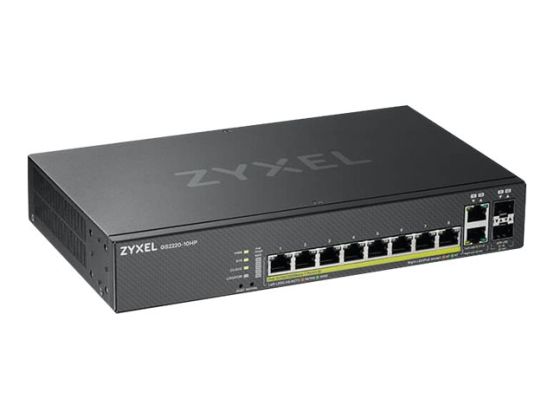

Name: Zyxel GS2220-10HP - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - rack-mountable, wall-mountable - PoE+ (180 W)
Brand: ZYXEL
SKU: 1TNETNHS-030388
Price: 307.18 GBP
Availability: OutOfStock

Overview

Main features

Zyxel GS2220-10HP
Switch
Managed
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
rack-mountable, wall-mountable
PoE+ (180 W)

Overview

Zyxel's GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. On top of the fully manageable L2 features set comes with the state-of-the-art Zyxel NebulaFlex Pro technology for cloud manageability.

Specification

Product Description Zyxel GS2220-10HP - switch - 8 ports - Managed - rack-mountable

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 180 W

Performance Switching capacity: 20 Gbps ¦ Forwarding rate: 15 Mpps ¦ Packet buffer size: 1.5 MB

MAC Address Table Size 16K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Features Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, Quality of Service (QoS), MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), port isolation, Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), cloud managed, DiffServ Code Point (DSCP) support, ErrDisable Recovery, IP source guard, ARP inspection, dual image support, Root Guard, Loop Guard, LLDP-MED, Energy-Efficient Ethernet (EEE), VLAN Tagging, MRSTP

Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 26.7 cm x 16.2 cm x 4.4 cm

Weight 1.8 kg

Localisation United Kingdom

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable, wall-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 180 W

Performance Switching capacity: 20 Gbps ¦ Forwarding rate: 15 Mpps ¦ Packet buffer size: 1.5 MB

MAC Address Table Size 16K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Encryption Algorithm SSL

Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, Quality of Service (QoS), MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), port isolation, Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), cloud managed, DiffServ Code Point (DSCP) support, ErrDisable Recovery, IP source guard, ARP inspection, dual image support, Root Guard, Loop Guard, LLDP-MED, Energy-Efficient Ethernet (EEE), VLAN Tagging, MRSTP

Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

RAM 256 MB

Flash Memory 32 MB

Status Indicators Status

Expansion / Connectivity

Interfaces 10 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232)

Power

Power Device Internal power supply

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 210.8 Watt

Miscellaneous

Included Accessories Wall mounting kit

Rack Mounting Kit Included

MTBF 587,477 hours

Compliant Standards BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A

Localisation United Kingdom

Dimensions & Weight

Width 26.7 cm

Depth 16.2 cm

Height 4.4 cm

Weight 1.8 kg

Dimensions & Weight (Shipping)

Shipping Width 37.5 cm

Shipping Depth 23.5 cm

Shipping Height 6.1 cm

Shipping Weight 2.7 kg

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 95%
