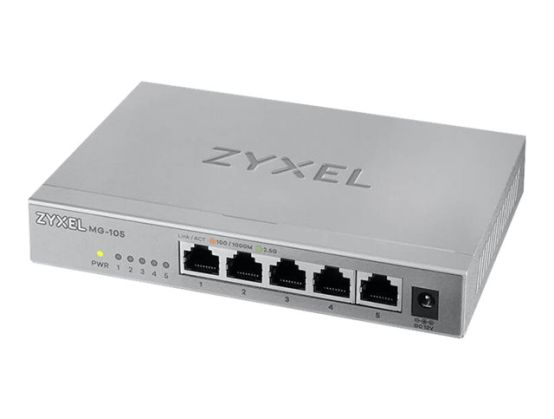

Zyxel MG-105 - Switch - unmanaged - 5 x 100/1000/2.5G Base-T - desktop
Manufacture#: MG-105-ZZ0101F
Checking delivery…
Product details
Switch
unmanaged
5 x 100/1000/2.5G Base-T
desktop
Payment options available at checkout
Main features
Zyxel MG-105
Switch
unmanaged
5 x 100/1000/2.5G Base-T
desktop
Overview
The Zyxel 2.5 Gigabit Switch MG-105 is the perfect candidates to upgrade your network speed and performance, bringing you up to 2.5 times faster experience than today's Gigabit network. Unlike traditional gigabit switches, the MG-105 supports 2.5G for all its Ethernet ports which can boost the entire network performance up to 2.5Gbps at once without compromising to limited high-speed port availability. Out-of-the-box network speed upgrade turns MG-105 into an optimal solution for home or small office users who needs more bandwidth for their network with demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity without the complex configuration.
Product Description
Zyxel MG-105 - switch - 5 ports - unmanaged
Device Type
Switch - 5 ports - unmanaged
Subtype
2.5 Gigabit Ethernet
Ports
5 x 100/1000/2.5G Base-T
Performance
Switching capacity: 25 Gbps ¦ Forwarding performance: 18.6 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
12KB
Features
Full duplex capability, flow control, QoS, auto-negotiation, 12MB packet buffer, fanless, auto-uplink (auto MDI/MDI-X), wall mountable
Compliant Standards
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Power
AC 100-240 V (50/60 Hz)
Dimensions (WxDxH)
16 cm x 11 cm x 2.6 cm
Weight
460 g
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
Desktop
Subtype
2.5 Gigabit Ethernet
Ports
5 x 100/1000/2.5G Base-T
Performance
Switching capacity: 25 Gbps ¦ Forwarding performance: 18.6 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
12KB
Features
Full duplex capability, flow control, QoS, auto-negotiation, 12MB packet buffer, fanless, auto-uplink (auto MDI/MDI-X), wall mountable
Compliant Standards
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Built-in Devices
Led panel
Status Indicators
Power, link/activity, port transmission speed
Expansion / Connectivity
Interfaces
5 x 100/1000/2.5G RJ-45
Power
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Miscellaneous
Compliant Standards
Plug and Play, EAC, FCC, BSMI Class B
Dimensions & Weight
Width
16 cm
Depth
11 cm
Height
2.6 cm
Weight
460 g
Dimensions & Weight (Shipping)
Shipping Width
21.5 cm
Shipping Depth
13.3 cm
Shipping Height
7.9 cm
Shipping Weight
919.6 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
