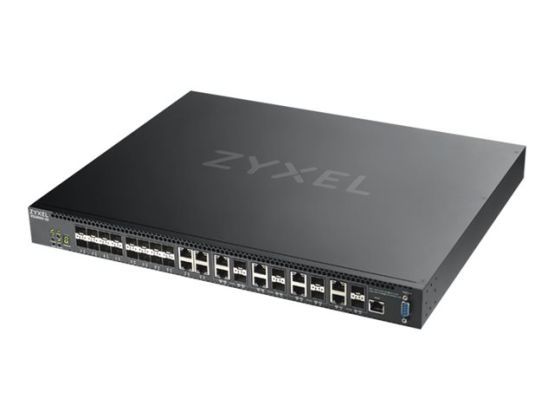

Name: Zyxel XS3800-28 - switch - 28 ports - Managed - rack-mountable
Brand: ZYXEL
SKU: 1TNETNHS-028328
Price: 3152.87 GBP
Availability: InStock

Overview

Main features

Zyxel XS3800-28
Switch
L2+
Managed
4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+
rack-mountable

Overview

Designed for SMB with 10GBASE-T connectivity and advanced L2+/L3 lite features, the new Zyxel 10-Gigabit L2+ managed switch XS3800-28 enables applications for aggregation or SMB core switching and connection; and the XS3800-28 also comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers, workstations and NAS.

Specification

Product Description Zyxel XS3800-28 - switch - 28 ports - Managed - rack-mountable

Device Type Switch - 28 ports - L2+ - Managed - stackable

Enclosure Type Rack-mountable

Subtype 10 Gigabit Ethernet

Ports 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+

Performance Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps

Capacity Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8

MAC Address Table Size 32K entries

Routing Protocol IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP

Features Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP

Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz

Power AC 120/230 V (50/60 Hz)

Power Redundancy Yes

Dimensions (WxDxH) 44.1 cm x 36 cm x 4.4 cm

Weight 4.81 kg

Localisation Europe

General

Device Type Switch - 28 ports - L2+ - Managed - stackable

Enclosure Type Rack-mountable

Subtype 10 Gigabit Ethernet

Ports 4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+

Performance Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps

Capacity Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8

MAC Address Table Size 32K entries

Routing Protocol IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP

Encryption Algorithm SSL

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP

Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz

RAM 8 GB

Flash Memory 64 MB

Status Indicators Port status, system, link/activity

Expansion / Connectivity

Interfaces 24 x 10Gbit LAN SFP+ ¦ 12 x 10GBase-T RJ-45 ¦ 1 x console DB-9 ¦ 1 x management RJ-45

Power

Power Device Internal power supply

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 86.97 Watt

Miscellaneous

Rack Mounting Kit Included

MTBF 656,274.78 hours

Compliant Standards BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC

Localisation Europe

Dimensions & Weight

Width 44.1 cm

Depth 36 cm

Height 4.4 cm

Weight 4.81 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 10 - 95% (non-condensing)
