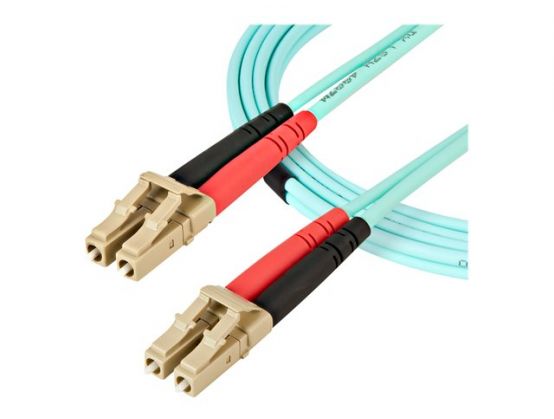

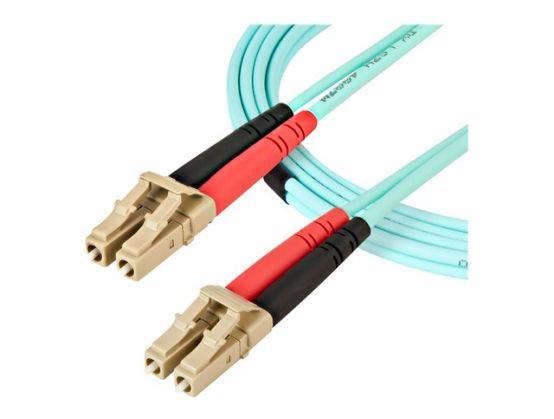

5m (15ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss - LSZH Fiber Patch Cord (450FBLCLC5).
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- SPECS: 5m (16.4ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Reliable performance
This patch cable supports a tested frequency of up to 3500 MHz, ensuring efficient data transmission with minimal loss.
Durable construction
The Low Smoke Zero Halogen (LSZH) jacket material enhances safety by reducing smoke and toxic emissions in case of fire.
Versatile application
Suitable for various networking needs, this cable features LC to LC connectors for compatibility with a wide range of devices.
High-quality technology
Equipped with Laser-optimized multimode fiber (LOMMF), this cable provides efficient performance for multimode applications.
Standard compliance
This patch cable adheres to OM4 standards and is RoHS compliant, making it a responsible choice for network installations.
