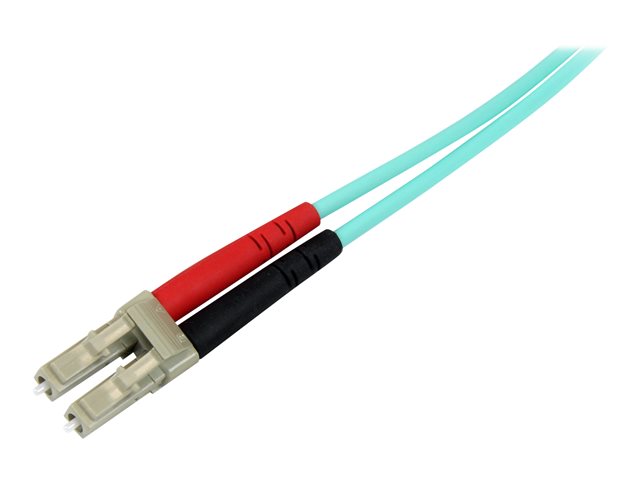

1m (3ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss - LSZH Fiber Patch Cord (450FBLCLC1).
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- SPECS: 1m (3.3ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Efficient data transmission
The Aqua OM4 Duplex Multimode Fiber Patch Cable is designed to facilitate high-speed communication, making it suitable for applications that require excessive bandwidth and minimal signal loss.
Laser-optimized multimode fiber
This cable features laser-optimized multimode fiber (LOMMF) that enhances the performance of 100 Gb networks, ensuring faster and more reliable data transfers.
Safety-focused jacket material
Constructed with a low smoke zero halogen (LSZH) jacket, this cable limits harmful smoke emissions during a fire, ensuring safety in indoor environments.
Versatile duplex mode
The duplex mode of this cable allows for simultaneous transmission and reception of data, significantly increasing network efficiency and performance.
Secure LC connectors
With LC connectors on both ends, the cable provides a secure connection, minimizing the risk of accidental disconnections in active network setups.
